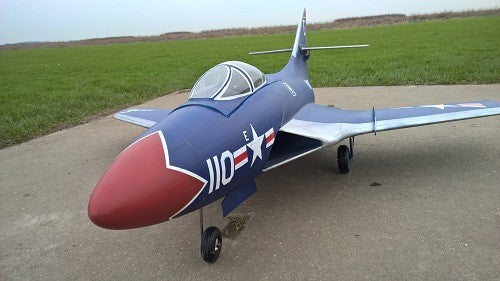

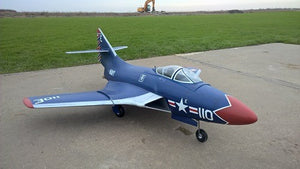

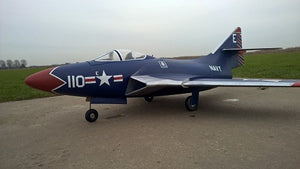

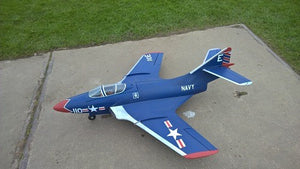

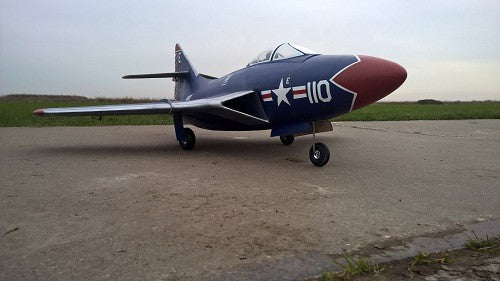

F9F-6 Cougar

Design Features:

• All Formers And Ribs CNC Cut
• Unique Tab Lock Design
• One Piece Design

Specifications:

• Wing Area: 45 dm2
• Wing Span: 1030 mm
• Total lenght: 1182mm
• Flight Weight: Starts at 2900 grams
• Wing Loading: 54gr dm2 to 75gr dm2
• 4 Channel, Ailerons, Elevator & Throttle, retracts

Kit Includes:

• Photo Instructions Download here instructionsand here pictures
• Full Size Rolled Cad Plans With All Parts Shown
• Vacuformed Canopy , fairings , nose cone
• Paper Intake Tube , PVC/Paper Outlet Tube
• No Control Horns , Steering Cables etc no Hardware

Required to Complete:

• Any inexpensive 4 Channel Radio
• Light weight Receiver
• Light weight Servos: About 18 grams
• Motor: Hetrc EDF600 serie
• RBC 70 amp Speed Controller
• Wemotec Midi fan or schuberle DS51
• Battery:6S to 8S lipo
• Thick and Thin CA glue, hinges , small screws
• Bungee Launch or Retracts (prepared)

The Cougar is not a upgraded Panther it is a complete new cad design

Some building pictures:

All fine cnccut formers from light ply and balsa

hard paper intace duct

note that the kit version has the fan unit 1 position more forward.

strip planking with 2mm balsa

classic wing build

elevator servo in rudder

wing joined permanent to fuselage

Canopy from clear petg build onto frame , makes also the battery hatch

prepared for retracts air or electric

Finished with 25gr glass and filler dope
