T-Lizzie

T-Lizzie - Oldtimer funflyer in modern cnc production and design
Designed by R. Bulk

Design Features:

• All Formers And Ribs CNC Cut
• Unique Tab Lock Design
• Two Piece Design Easy transportation
• Motor/Battery compartment Easy accesable
• Battery Access Through fuselage hatch

Specifications:

• Wing Area: 40 dm2
• Wing Span; 1430 mm
• Flight Weight: Starts at 1200 grams
• Wing Loading: 33gr dm2
• 4 Channel Controls

Kit Includes:

• Photo Instructions download here
• Full Size Rolled Cad Plans With All Parts Shown
• All wood included
• Vacuumformed motor cowl
• Pre bend landing gear, inc steering tailsled
•


Required to Complete:

• 4 Channel Radio.Light weight Receiver:
• Air, wheels 85-125mm balloon 25mm tailwheel if choosen
• Light weight Servos: About 13grams (2x elevator and rudder)
• Motor: type G32 /SK3 3548 840kv lipo
• Control Horns, Steering Cables, Hinges
• 40 amp controller,
• Some paint,foil finish
• Battery: 3S 2200 lipo
• Thick and Thin CA glue 2-3 bottles
• Grass or concrete airfield

classic woodbuilding with cnc parts

tab notch self aligning fuselage build

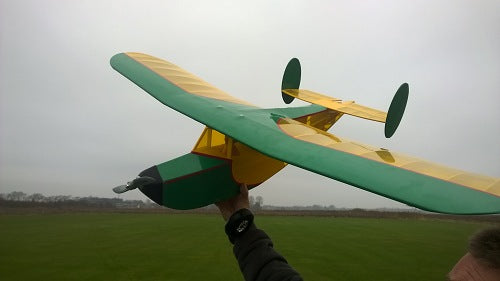

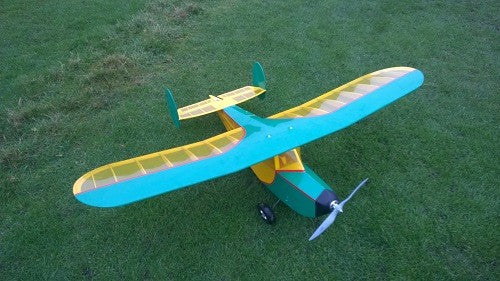

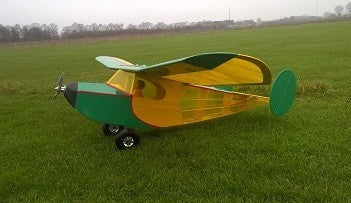

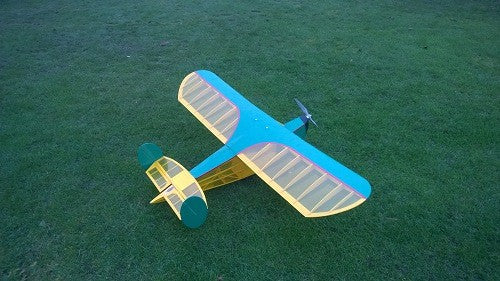

wooden beauty

controlls are in the back fuselage
