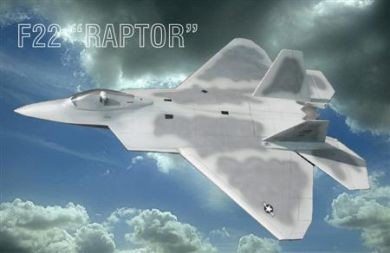

F22 "Raptor"

The F22 "Raptor" - Complete cnc cut kit for twin mini fan drive.
The F22 is easy flying, and one of our most popular EDF Jets.

This movie is by Brett Warwick from Australia. Thanks Brett!

Design Features:

• All Formers And Ribs CNC Cut
• Unique Tab Lock Design
• One Piece Design Easy transportation
• Motor/Fan compartment Easy accessible
• Battery Access Through Canopy

Specifications:

• Wing Area: 30 dm2
• Wing Span; 840 mm Length 1170mm
• Flight Weight: Starts at 1600 grams
• Wing Loading: 53gr dm2 to 66gr dm2
• 3 Channel Tailerons & Throttle

Kit Includes:

• Photo Instructions Download here
• Full Size Rolled Cad Plans With All Parts Shown
• Vacuformed Canopy
• PetG Outlet Tubes
• Control Horns, Steering Cables

Required to Complete:

• 3 Channel Radio.
• Light weight Receiver:
• Light weight Servos: About Metal gear (2x)
• Motor: Hetrc edf 4W (5 lipo) 2x
• Tsunami 30 2x bec modification
• Wemotec Mini Fan 480 2x
• Battery: 5S 3200 lipo
• Thick and Thin CA glue
• Strong Bungee Launch req.
• The F22 needs a 8mmx7,5mtr bungee with 10kg of pulling power.

Pictures from the build:

Easy frame set up

Easy sheeting Balsa intakes.

Fins installed, but removable.

Very easy wings, no ailerons.

Quickly sheeted see the connection pegs.

Easy motor accesS through hatch.
